220Wp/m2
Peak Power Output
5 Kg/m2 or 10.5 Kg/m2
Panel Option
30
Year Performance Warranty
15
Year Product Warranty

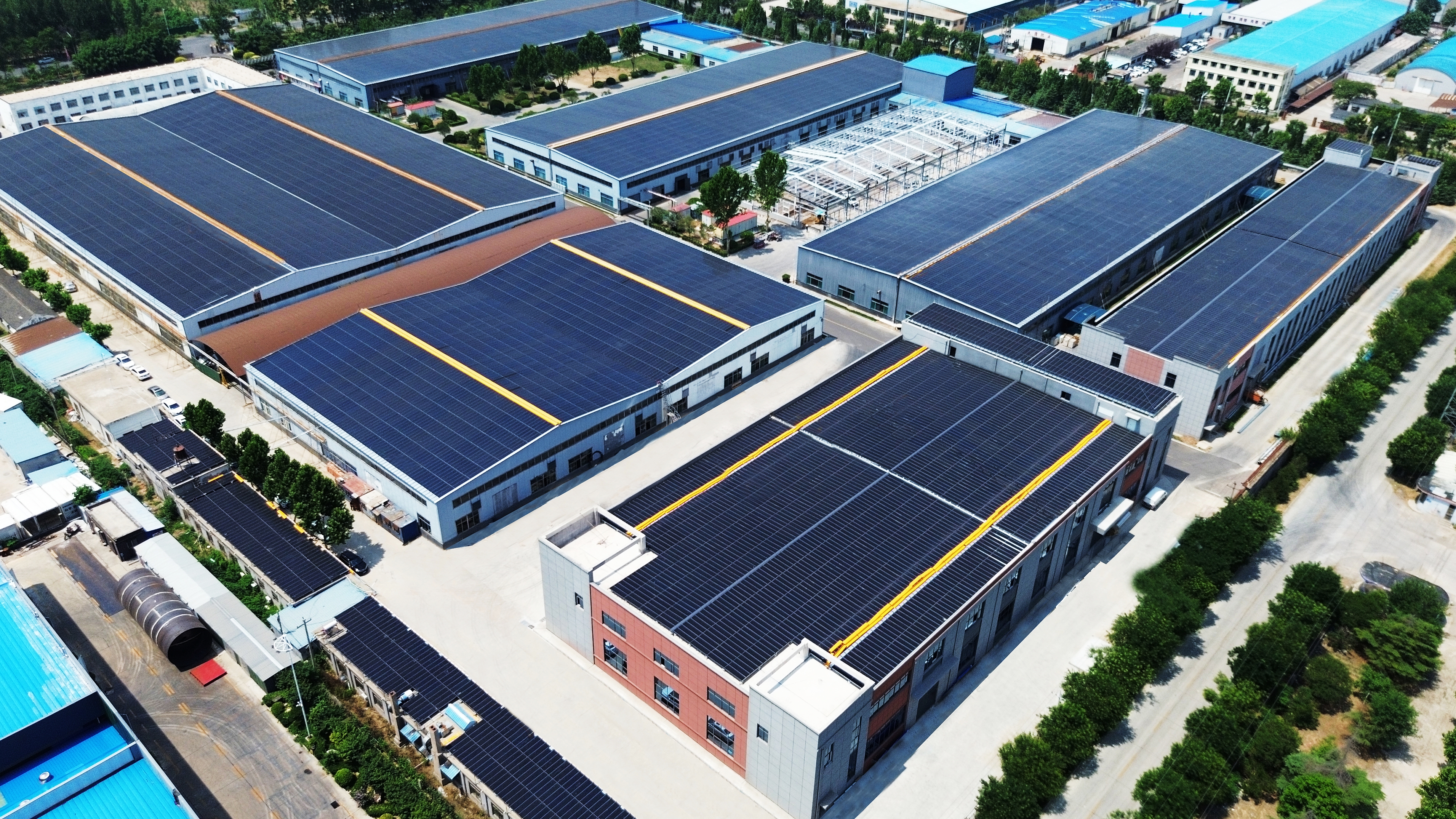

AURE x Helios Rooftop Solar
AURE x Helios Rooftop Solar is an integrated system that turns the roof into a high-output generating surface. Tempered, metal-backed panels come in trafficable and lightweight versions to suit the structure. The fully sealed mounting system forms a second roof that keeps water out and extends the life of the structure below. The AURE x Helios Rooftop panels are suitable for commercial and industrial new builds and retrofits.
Product Features
Monocrystalline Cells
High-quality monocrystalline silicon cells generate up to 220 Wp/m². That high generation density supports a payback of under three years, subject to layout, structural design and solar radiation, giving a clear and measurable return on investment.
Aluminium-Backed Lightweight Panel
An aluminium-backed panel at just 5 Kg/m² suits roofs with limited structural capacity. It keeps installation fast, cutting both programme time and cost.
Steel-Backed Trafficable Panel
A steel-backed panel at 10.5 Kg/m² creates a walkable solar surface. This allows safe, convenient roof access for maintenance, without the need for dedicated walkways.
Integrated Sealed Frame
An integrated frame design with a fully sealed mounting system allows for easy and fast installation. The panels also form a secondary roof surface that protects the existing roof and extends its lifespan.
Why AURE x Helios Rooftop Solar?
| FEATURE | AURE X HELIOS ROOFTOP SOLAR |
|---|---|
| Performance | 220 Wp/m² |
| Panel Backing | Aluminium or Steel backed options |
| Solution | Panels, mounting system, fixings, sealants, cabling routes and inverter specifications |
| Payback | 3 Years |
| FEATURE | AURE X HELIOS ROOFTOP SOLAR |
|---|---|
| Peak Power Output | 220 Wp/m² |
| Max Power Output (Pmax) | 590-605 W |
| Voltage at Max Power | 43.4 V |
| FEATURE | AURE X HELIOS ROOFTOP SOLAR |
|---|---|
| Panel Weight | 5 Kg/m² or 10.5 Kg/m² |
| Panel Size | 2275 mm x 1200 mm |
| Backing Material | Steel or Aluminium |
Backed by Science
AURE x Helios products go through rigorous independent testing and certification, giving specifiers and owners reassurance about how each product will perform in the building. That evidence is backed by a 15-year product warranty and a 30-year linear power performance warranty.
CEC AU
Clean Energy Council Listing Australia
IEC 61215
PV Module Design Qualification and Type Approval
The Installation
AURE x Helios Rooftop Solar Panels are built project-ready for fast installation. Watch the installation video below.
