220Wp/m2
Peak Power Output
5
Year Payback
30
Year Performance Warranty
15
Year Product Warranty
AURE x Helios Solar Carpark

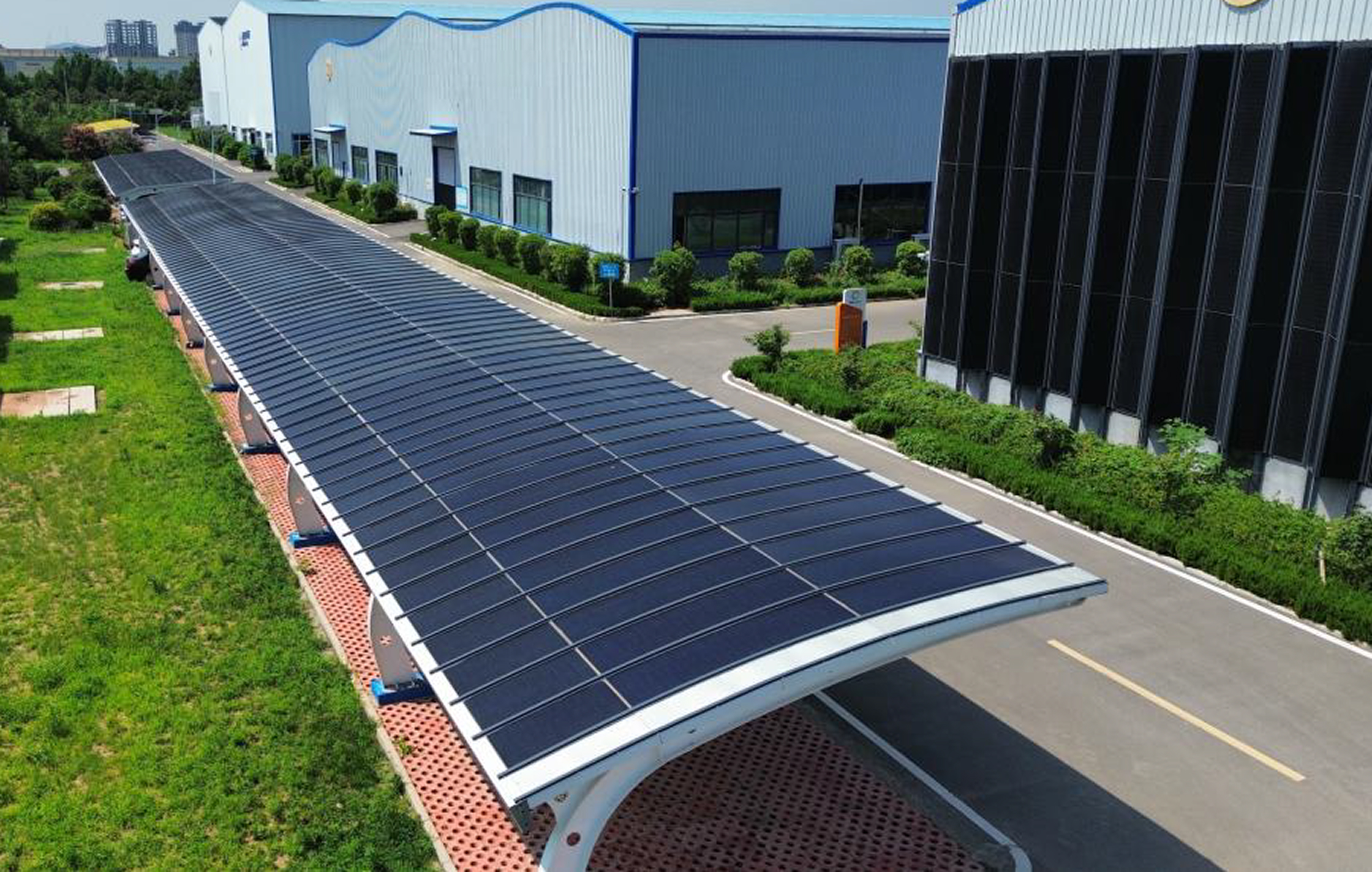

AURE x Helios Solar Carpark turns the carpark canopy into a power source, generating more than 220 Wp/m². The panels form the roof structure and are held by single or double-column framing to suit the site. The canopy is waterproof, fire-resistant and hail-resistant, with concealed junction boxes and DC cables.
Product Features
Monocrystalline Cells
High-quality monocrystalline silicon cells generate more than 220 Wp/m². The carpark draws clean power from existing parking areas, with total payback under five years, subject to panel layout, structural design and local solar radiation.
Construction Specifications
Waterproof, fire-resistant and hail-resistant with no exposed junction boxes or DC cables. The system delivers a long service life with low maintenance all while sheltering the vehicles parked beneath.
Two-Post Cantilever Structure
A two-post support system removes central pillars, reducing the risk of vehicle damage and keeping the parking layout clear.
Prefabricated Modular System
A modular, prefabricated design arrives ready to assemble, so installation is fast and disruption to carpark operations is kept to a minimum.
Low Embodied Carbon Steel Frame
A modern cantilever support system reduces the structure’s embodied carbon, shortening the time it takes for clean energy generation to offset the footprint of the build itself.
Why AURE x Helios Solar Carpark?
| FEATURE | AURE X HELIOS SOLAR CARPARK |
|---|---|
| Performance | Up to 220 Wp/m² |
| Panel Weight | 10.5 Kg/m² |
| Payback | Sub 5 Year (subject to various factors) |
| Sustainability Ratings | Energy generation helps to support sustainability goals |
| FEATURE | AURE X HELIOS SOLAR CARPARK |
|---|---|
| Peak Power Output | Up to 220 Wp/m² |
| Max Power Output (Pmax) | 590 - 605 W |
| Voltage at Max Power | 43.4 V |
| FEATURE | AURE X HELIOS SOLAR CARPARK |
|---|---|
| Panel Weight | 10.5 Kg/m² |
| Panel Size | 2275 mm x 1200 mm |
| Backing Material | Steel |
| Framing System | Single-Column System (6 Spaces) Two-Column System (12 Spaces) Y-Column System (24 Spaces) |
Backed by Science
AURE x Helios products go through rigorous independent testing and certification, giving specifiers and owners reassurance about how each product will perform in the building. That evidence is backed by a 15-year product warranty and a 30-year linear power performance warranty.
CEC AU
Clean Energy Council Listing Australia
